Keyboard Navigation with Roving Index

🎯 What Problem Are We Trying to Solve?

Switching between multiple lists using the tab key and navigating within them using the arrow keys is accessible and very satisfying!

The Roving Index Technique

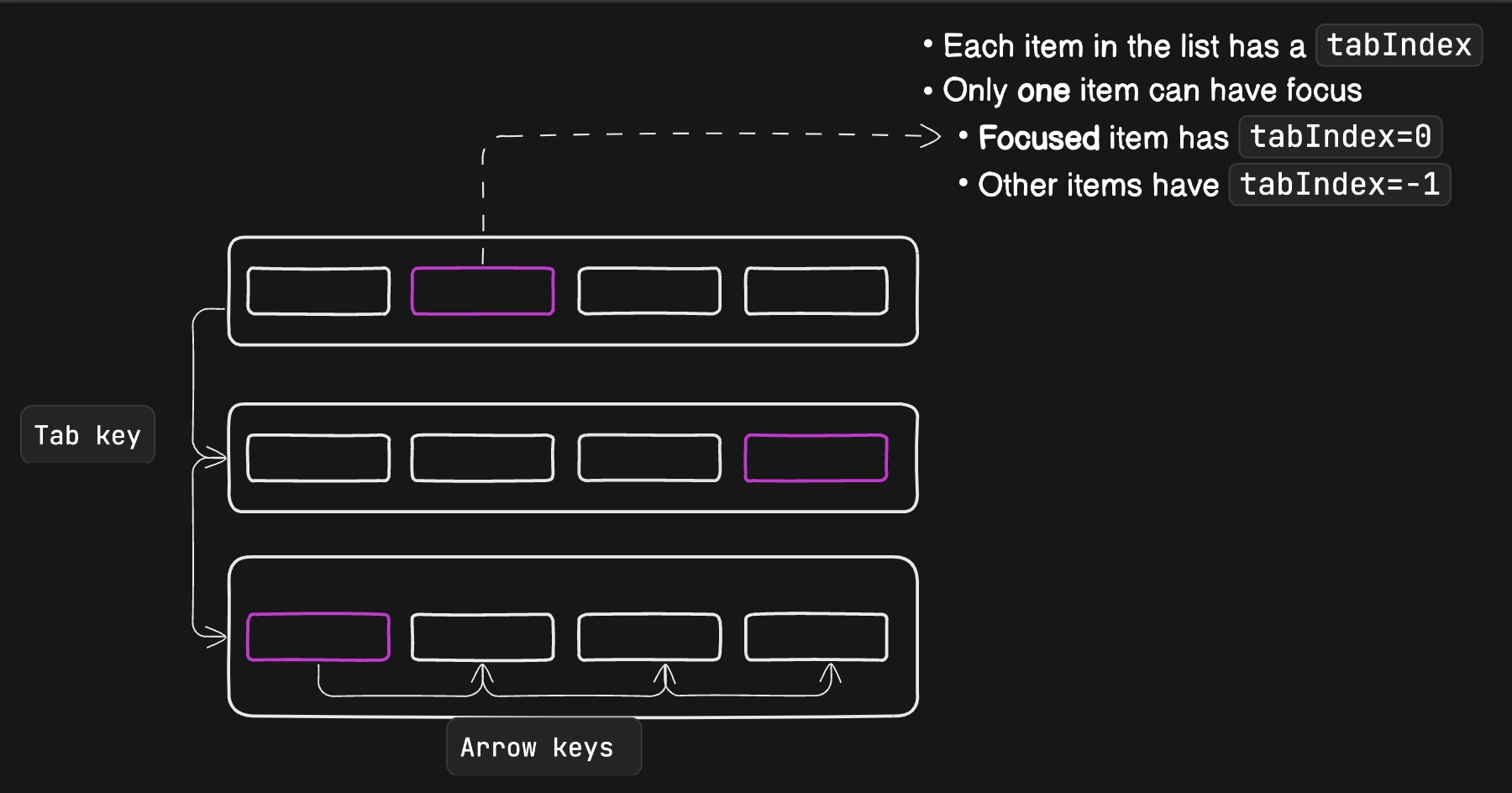

The roving index technique involves dynamically managing focus within lists, where only one element in a list is focusable at a time. As the user navigates through the list, the focus moves with them.

• Initialization:

  • For each list, make the first item focusable by setting tabindex=0
  • Make all other items not focusable by setting tabindex=-1

• Arrow Key Navigation:

  • Listen for keydown events
  • ArrowDown or ArrowRight: move focus to the next item in the list
  • ArrowUp or ArrowLeft: move focus to the previous item in the list
  • 🔥Bonus: vim keybindings

• Tab Navigation:

  • Listen for keydown events
  • Tab: move focus to the next list
  • Shift-Tab: move focus to the previous list

• Tab :  Next list

• Shift + Tab :  Previous list

• ↓ or → :  Next item

• ↑ or ← :  Previous item

• ctrl + n or ctr + j :  Next Item

• ctrl + p or ctr + k :  Previous Item

Code

• To separate state from UI, we’ll create a hook
• We need to:
  • keep track of which element/index in the list has focus
  • avoid focusing the element on page load
  • handle keyboard events
    • update activeIndex state accordingly

export const useRover = <T extends HTMLElement>(listLength: number) => {
  const [activeIndex, setActiveIndex] = useState(0)
  const activeEl = useRef<T>()

  // didMount is used to avoid focusing the element on page load
  // We want to mark the activeIndex but not focus it yet
  const didMount = useRef(false)
  useEffect(() => {
    didMount.current = true
  }, [])

  // focus prev item
  // loop around the list
  const prev = () => {
    setActiveIndex((prev) => {
      return activeIndex > 0 ? prev - 1 : listLength - 1
    })
  }

  // focus next item
  // loop around the list
  const next = () => {
    setActiveIndex((prev) => {
      return prev < listLength - 1 ? prev + 1 : 0
    })
  }

  // handle keyboard events and  only preventDefault on expected keys
  const handleKeyDown = useCallback(
    (ev: KeyboardEvent) => {
      if (isNextKey(ev)) {
        ev.preventDefault()
        return next()
      }

      if (isPrevKey(ev)) {
        ev.preventDefault()
        return prev()
      }
    },
    [next, prev]
  )

  // We'll call this on each list item ref
  const focuseEl = useCallback((el: T) => {
    if (didMount.current) {
      if (el !== activeEl.current) {
        activeEl.current = el
        el.focus()
      }
    }
  }, [activeIndex])

  return {
    activeIndex,
    handleKeyDown,
    focuseEl,
    focusIndex: (index: number) => setActiveIndex(index)
  }
}

const isNextKey = (ev: KeyboardEvent) => {
  switch (ev.key) {
    case "ArrowDown":
    case "ArrowRight":
      return true
    // vim'ish
    case "n":
    case "j":
      if (ev.ctrlKey) {
        return true
      }
    default:
      return false
  }
}

• On the UI side, for each list, we need to:
  • connect a keyboard event handler to the list
  • set the correct tabIndex for each list item
  • update the focus index if the list item gains focus through a mouse click

// Render a RovingList for each list

const LISTS = [
  ["apple", "banana", "orange", "grape", "peach", "pineapple"],
  ["red", "orange", "yellow", "green", "blue", "purple"],
  ["dog", "cat", "bird", "fish", "lion", "tiger", "whale"]
]

function app () {
  return <List lists={LISTS} />
}


function List(props: { lists: string[][] }) {
  return props.lists.map((list, index) => (
    <RovingList key={index} list={list} />
  )
}

function RovingList({ list }: { list: string[] }) {
  const { activeIndex, handleKeyDown, focuseEl, focusIndex } = useRover<HTMLLIElement>(
    list.length
  )

  return (
    <ul onKeyDown={handleKeyDown}>
      {list.map((item, index) => {
        const tabIndex = index === activeIndex ? 0 : -1

        return (
          <li
            key={item}
            tabIndex={tabIndex}
            // update the focus state when a user clicks on this item
            onFocus={() => focusIndex(index)}
            ref={tabIndex === 0 ? focuseEl : undefined}
          >
            {item}
          </li>
        )
      })}
    </ul>
  )
}
